AquaRay Heat and Chill pump can be used for heating or cooling the swimming pool. spa or some other tank water cooling system. The heat and chill pump manufactured the very highest international standard quality with advanced technologies to maximize the performance and minimize consumption. In consideration of this, AquaRay heat pumps have always been specifically made to have higher COP at a lower temperature when maximum energy is needed. All heat pumps will be available with environmentally friendly refrigerants.

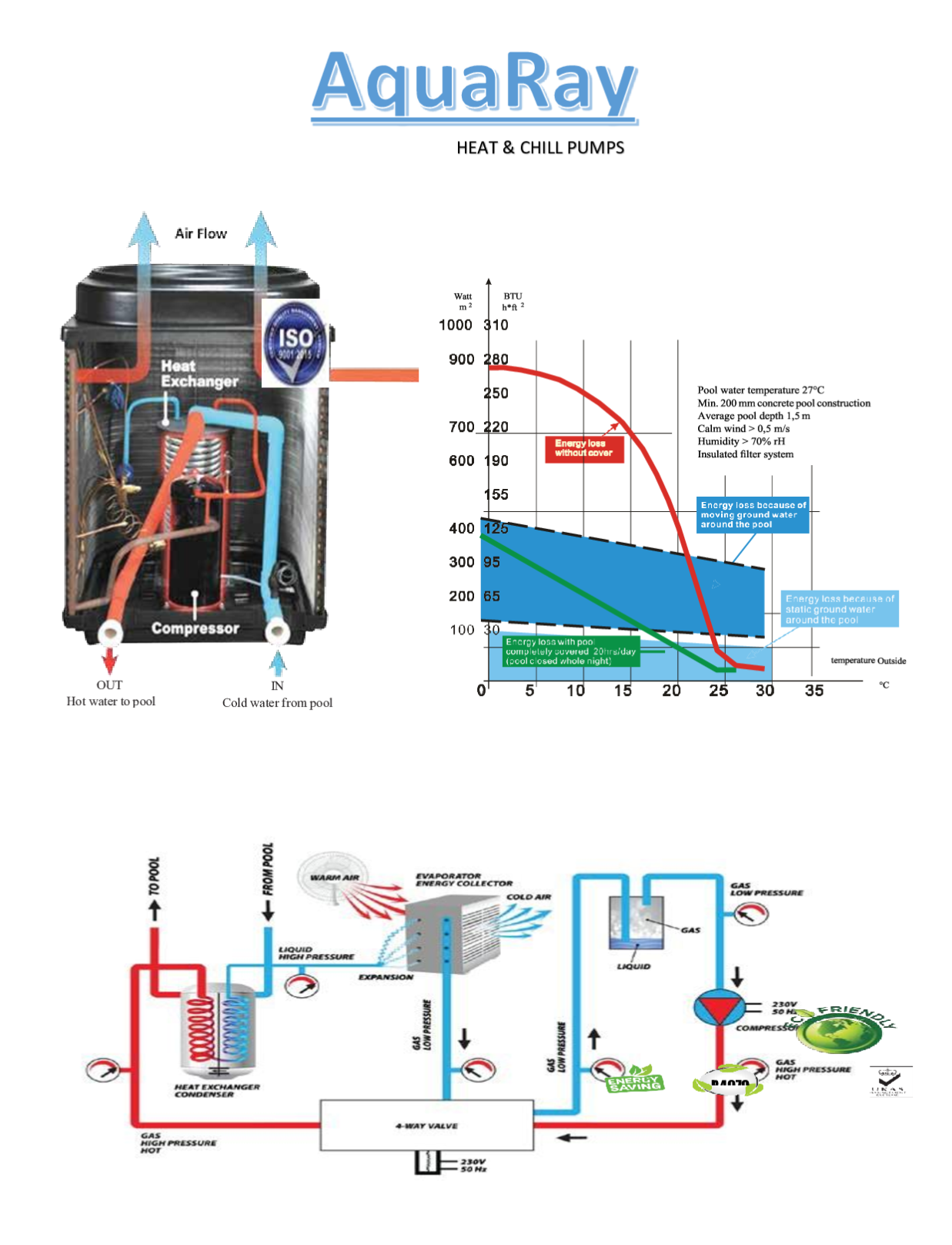

Heat pump and chill pump principle Heat pumps function like a reversed air conditioning cooling system. The heat pump fan draws ambient air through the outer evaporator air coil that acts as a heat collector. The air coil has a liquid refrigerant that absorbs available heat in the passing air transforming it into a gas that is compressed by a compressor. When the gas is compressed it intensifies and concentrates the heat.
This intensely hot gas is then pumped into the heat exchange condenser where the actual heat exchanger takes place. As the pool water passes through the heat exchanger, the hot gas gives up its heat to the cooler pool water. Uses freely available air energy 4-5 times more effective than conventional electrical heaters. If heat energy is converted to KW you get 4-5 kW of heating/cooling output for every KW of power consumed, you get at least 4-5KW of free power.
Adopt a heat pump for heating and the energy comes from ambient air. So, its COP can reach 4.0 -5.0. 70% can be saved compared with a normal electrical heater.
Water and electricity are completely separate. ECO-friendly gas, no fire, no electricity leakage, safer than fuel burner or electrical heater.
Adopt R407-C, R410-A, R134-A, R22 as refrigerant according to the requirements of the EU Montreal protocol.
LONG LIFE RUNNING
Titanium heat exchanger in SS case shell makes it super strong and resistant against erosion caused by chlorine and salt. SS316 casing for the titanium heat exchanger is an option.
COMPRESSOR
We use the reliable COPELAND scroll compressor. The simple design is with very few moving parts that enable it to operate at lower sound and vibration levels than reciprocating compressors. The test has shown that scroll compressors are up to three times quieter than other models. Millions of air conditioner around the world using Copeland scroll compressors is testimony to its quality and efficiency.

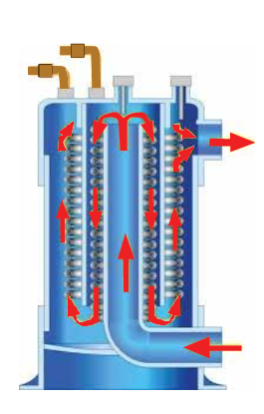

This is made of double spiraled titanium tubes encased stainless steel bodies for additional protection against corrosive pool water. Titanium heat exchangers are superior to stainless steel and make the heat pump more efficient and cost-effective. The double spiraling of the heat exchanger increases the surface area that comes in contact with the pool water and also
drastically reduces scaling
EXTERNAL HEAT EXCHANGER
The tubes are made of copper and the fins in aluminum. The extra-large evaporator coils are designed to collect more heat from the outside air to ensure performance in even the most adverse conditions.
Heat And Chill Pump
The tubes are made of copper and the fins in aluminum. The extra-large evaporator coils are designed to collect more heat from the outside air to ensure performance in even the most adverse conditions
FEATURES
Oversized air coil-higher COP and wider. Electrostatic coated air coilcorrosion protection. Titanium class A1 double coil shell-tube heat exchanger-higher COP. Electrical expansion valve-higher COP and wider working temperature range Microprocessor controlled auto-charge defrost-high COP. Waterproof display and keyboard for operation. Dual fan speed-low noise. Stainless steel cabinet on request. Compressor heater wider working temperature range. Quick connectors for easy and fast installation.
FAN
Large axial fans, with precision-engineered blades are used to draw maximum ambient air and pass it on to the evaporator coils.
REFRIGERANT
We use the ecologically approved refrigerant R407-C, R410-A, R134-A, R22 depending on the client’s requirement.
Pool Heating
TECHNICAL SPECIFICATION
Running Ams
Model
INSTALLATION

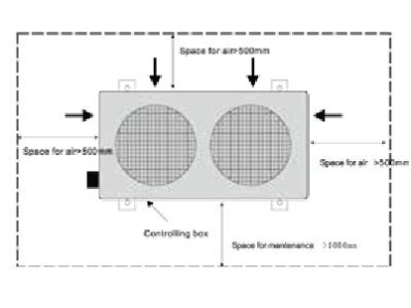

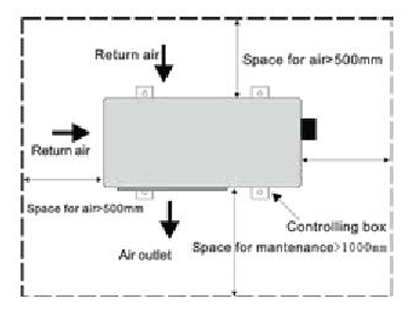

location for installation of units is outdoor with free air movement for higher efficiency. Choose a good place with ventilation Keep proper space around the unit for installation and maintenance - see illustration There must be a drainage channel around the unit for condensing water Parallel connection must be carried out if several units installed together
INSTALLATION SPACE FOR SIDEDISCHARGE UNITS
INSTALLATION SPACE FOR SIDE DISCHARGE UNITS
Model: PBR 25HP, PBR35HP
Model: , PBR150HP, PBR200HP
INSTALLATION SPACE FOR SIDE DISCHARGE UNITS
Model: PBR15HP, PBR20HP, PBR35HP,
There must be no obstacle on the top of these
units as the air direction are vertical
Commercial & Domestic
Chillers

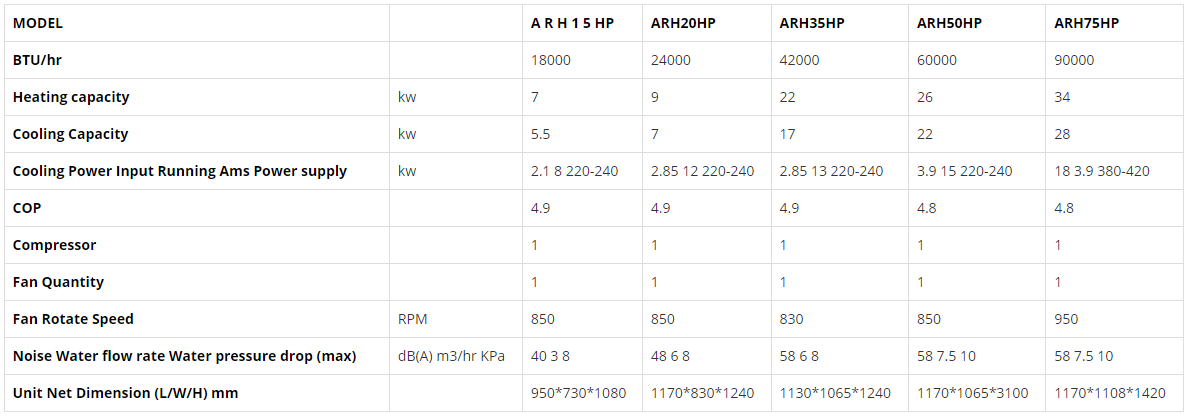

| MODEL | A R H 1 5 HP | ARH20HP | ARH35HP | ARH50HP | ARH75HP | |
| BTU/hr | 18000 | 24000 | 42000 | 60000 | 90000 | |
| Heating capacity | kw | 7 | 9 | 22 | 26 | 34 |
| Cooling Capacity | kw | 5.5 | 7 | 17 | 22 | 28 |
| Cooling Power Input Running Ams Power supply | kw | 2.1 8 220-240 | 2.85 12 220-240 | 2.85 13 220-240 | 3.9 15 220-240 | 18 3.9 380-420 |
| COP | 4.9 | 4.9 | 4.9 | 4.8 | 4.8 | |
| Compressor | 1 | 1 | 1 | 1 | 1 | |
| Fan Quantity | 1 | 1 | 1 | 1 | 1 | |
| Fan Rotate Speed | RPM | 850 | 850 | 830 | 850 | 950 |
| Noise Water flow rate Water pressure drop (max) | dB(A) m3/hr KPa | 40 3 8 | 48 6 8 | 58 6 8 | 58 7.5 10 | 58 7.5 10 |
| Unit Net Dimension (L/W/H) mm | 950*730*1080 | 1170*830*1240 | 1130*1065*1240 | 1170*1065*3100 | 1170*1108*1420 |
| Specification | AR100HP | AR125HP | AR150HP | AR200HP | AR250CT | |
| BTU/hr | 120000 | 150000 | 180000 | 240000 | 300000 | |
| Heating capacity | kw | 45 | 55 | 70 | 92 | 115 |
| Cooling Capacity | kw | 35 | 45 | 60 | 82 | 105 |
| Cooling Power Input | kw | 10.3 | 17.8 | 24.7 | 41.6 | 56.2 |
| COP | 4.9 | 4.7 | 4.5 | 4.7 | 4.5 | |
| Compressor | 2 | 2 | 3 | 3 | ||
| Fan Quality | 2 | 2 | 3 | 3 | 3 | |
| Fan Rotate Speed | RPM | 830 | 830 | 830 | 870 | 920 |
| Noise | dB(A) | 61 | 62 | 62 | 65 | 67 |
| Water Flow | m3/hr | 18 | 30 | 32 | 40 | 50 |
| Unit Net Dimension (L/W/H) mm | 1450*730*1080 | 2170*830*1440 | 2170*1065*1930 | 2170*1065*2100 | 2850*1108*2220 |

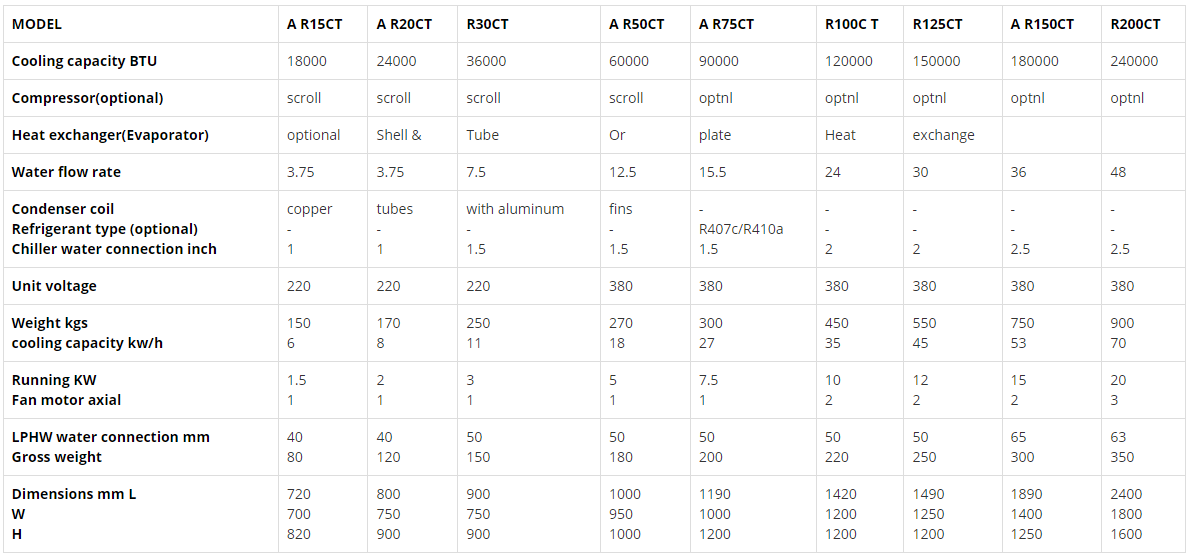

| MODEL | A R15CT | A R20CT | R30CT | A R50CT | A R75CT | R100C T | R125CT | A R150CT | R200CT |
| Cooling capacity BTU | 18000 | 24000 | 36000 | 60000 | 90000 | 120000 | 150000 | 180000 | 240000 |
| Compressor(optional) | scroll | scroll | scroll | scroll | optnl | optnl | optnl | optnl | optnl |
| Heat exchanger(Evaporator) | optional | Shell & | Tube | Or | plate | Heat | exchange | ||
| Water flow rate | 3.75 | 3.75 | 7.5 | 12.5 | 15.5 | 24 | 30 | 36 | 48 |
| Condenser coil Refrigerant type (optional) Chiller water connection inch |
copper - 1 |
tubes - 1 |
with aluminum - 1.5 |
fins - 1.5 |
- R407c/R410a 1.5 |
- - 2 |
- - 2 |
- - 2.5 |
- - 2.5 |
| Unit voltage | 220 | 220 | 220 | 380 | 380 | 380 | 380 | 380 | 380 |
| Weight kgs cooling capacity kw/h |
150 6 |
170 8 |
250 11 |
270 18 |
300 27 |
450 35 |
550 45 |
750 53 |
900 70 |
| Running KW Fan motor axial |
1.5 1 |
2 1 |
3 1 |
5 1 |
7.5 1 |
10 2 |
12 2 |
15 2 |
20 3 |
| LPHW water connection mm Gross weight |
40 80 |
40 120 |
50 150 |
50 180 |
50 200 |
50 220 |
50 250 |
65 300 |
63 350 |
| Dimensions mm L W H |
720 700 820 |
800 750 900 |
900 750 900 |
1000 950 1000 |
1190 1000 1200 |
1420 1200 1200 |
1490 1250 1200 |
1890 1400 1250 |
2400 1800 1600 |
NOTES:
As per the client’s requirement, refrigerant gas can be changed, accordingly, the technical specification will also change The higher capacity chiller can make as per customer specification The specifications mentioned are subject to change for product improvement. Chiller capacity will change as per the water consumption &ambient temperature. Domestic tank cooling chiller
